| Quantity: | |
|---|---|
BY560
BAYU HOSE
3917390000

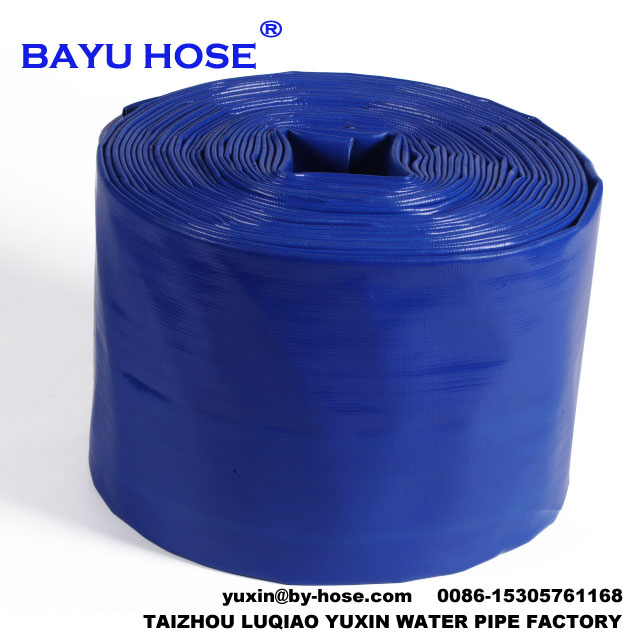

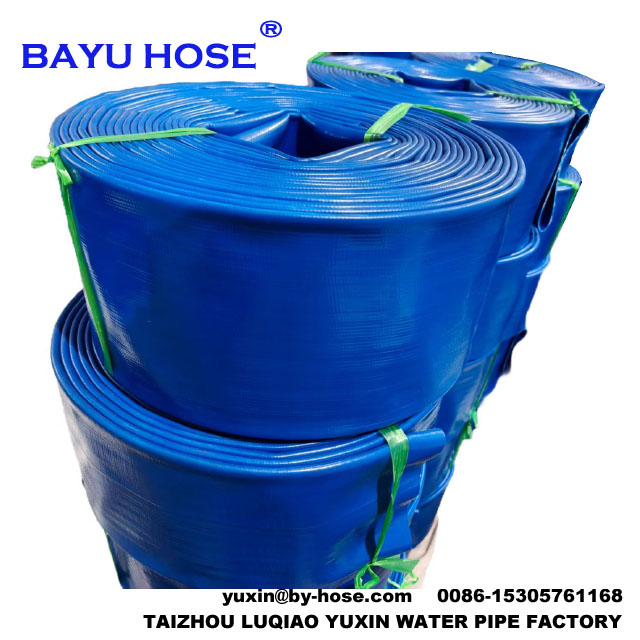

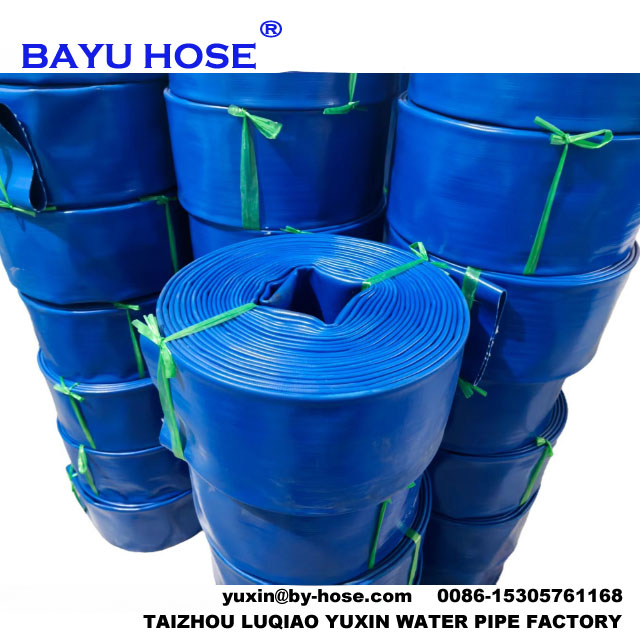

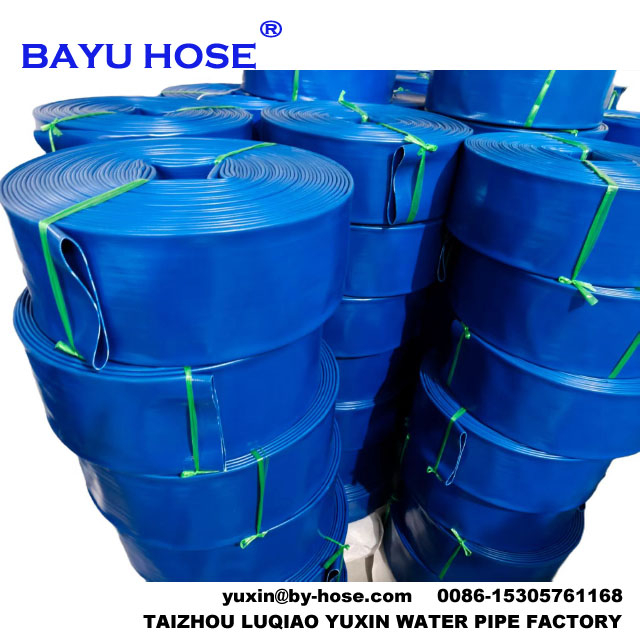

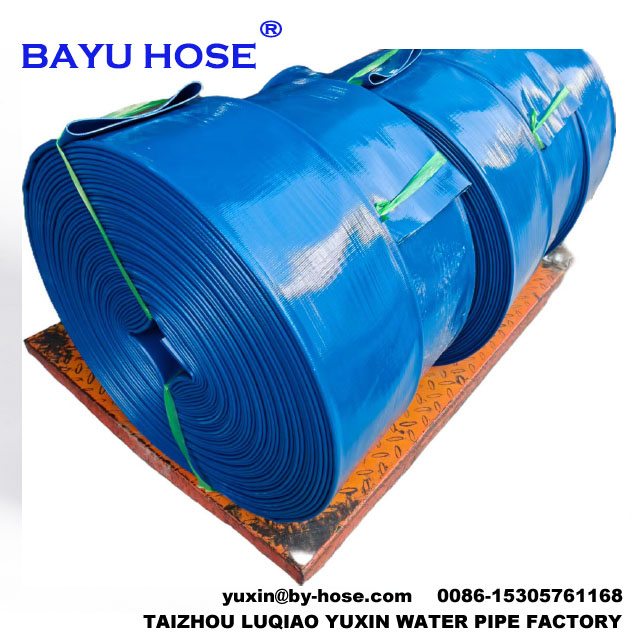

Advantage Of 5 Inch PVC Lay Flat Hose:
This 5 inch blue flexible PVC lay flat hose is a professional water discharge pipe ideal for agricultural irrigation and construction site water supply and drainage projects. It is manufactured with high-density PVC material to ensure good flexibility, wear resistance and aging resistance, providing long service life even under frequent use.
The lay flat design makes the hose lightweight and easy to roll up, which greatly saves storage space and transportation costs. It has stable pressure resistance and reliable connection performance, ensuring safe and efficient water transfer.
This PVC lay flat hose is widely applied to farm irrigation, garden watering, construction drainage, pond pumping, flood control and emergency water delivery. With stable quality and strong applicability, it is very suitable for wholesale, international export and various heavy-duty working environments.
OEM&ODM
| Article NO. | Size | ID | OD | Working Pressure | Bursting Pressure | Weight | PACAKING SIZE | VOLUME | |
| BY Series | Inch | mm | BAR | KG/100M | ID(cm) | Length(cm) | m³ | ||
| BY210 | 1 | 25 | 27 | 2 | 6 | 13 | 54 | 4.5 | 0.013 |
| BY212 | 1.25 | 32 | 34 | 14.5 | 54 | 5.5 | 0.016 | ||
| BY215 | 1.5 | 38 | 40 | 18 | 54 | 6.5 | 0.019 | ||
| BY220 | 2 | 50 | 52 | 24 | 55 | 8.5 | 0.026 | ||
| BY225 | 2.5 | 63 | 65 | 31 | 55 | 11 | 0.033 | ||
| BY230 | 3 | 76 | 78 | 36 | 60 | 13 | 0.047 | ||
| BY240 | 4 | 100 | 102 | 50 | 68 | 17 | 0.079 | ||
| BY250 | 5 | 125 | 128 | 75 | 72 | 21 | 0.109 | ||
| BY260 | 6 | 150 | 153 | 91 | 75 | 25 | 0.141 | ||
| BY280 | 8 | 200 | 203 | 137 | 75 | 33 | 0.186 | ||
| Article NO. | Size | ID | OD | Working Pressure | Bursting Pressure | Weight | PACAKING SIZE | VOLUME | |
| BY Series | Inch | mm | BAR | KG/100M | ID(cm) | Length(cm) | m³ | ||
| BY310 | 1 | 25 | 27.5 | 3 | 9 | 16 | 54 | 4.5 | 0.013 |
| BY315 | 1.5 | 38 | 40.5 | 22 | 56 | 6.5 | 0.021 | ||
| BY320 | 2 | 50 | 52.5 | 30 | 63 | 8.5 | 0.034 | ||
| BY325 | 2.5 | 63 | 65.5 | 40 | 65 | 11 | 0.047 | ||
| BY330 | 3 | 76 | 79 | 46 | 65 | 13 | 0.055 | ||
| BY340 | 4 | 100 | 103 | 64 | 66 | 17 | 0.075 | ||
| BY350 | 5 | 125 | 128 | 81 | 67 | 21 | 0.095 | ||
| BY360 | 6 | 150 | 153 | 92 | 72 | 25 | 0.13 | ||
| BY380 | 8 | 200 | 203 | 138 | 78 | 33 | 0.201 | ||
| BY3100 | 10 | 250 | 253 | 250 | 85 | 40 | 0.29 | ||
| BY3120 | 12 | 300 | 305 | 350 | 93 | 48 | 0.42 | ||
| Article NO. | Size | ID | OD | Working Pressure | Bursting Pressure | Weight | PACAKING SIZE | VOLUME | |
| BY Series | Inch | mm | BAR | KG/100M | ID(cm) | Length(cm) | m³ | ||
| BY420 | 2 | 50 | 53 | 4 | 12 | 35 | 67 | 8.5 | 0.039 |
| BY425 | 2.5 | 63 | 66 | 45 | 67 | 11 | 0.05 | ||
| BY430 | 3 | 76 | 79 | 55 | 71 | 13 | 0.066 | ||
| BY440 | 4 | 100 | 103.5 | 75 | 73 | 17 | 0.091 | ||
| BY450 | 5 | 127 | 130.5 | 87 | 75 | 21 | 0.119 | ||
| BY460 | 6 | 152 | 155.5 | 125 | 80 | 25 | 0.16 | ||
| BY480 | 8 | 203.2 | 207.2 | 150 | 85 | 33 | 0.239 | ||
| Article NO. | Size | ID | OD | Working Pressure | Bursting Pressure | Weight | PACAKING SIZE | VOLUME | |
| BY Series | Inch | mm | BAR | KG/100M | ID(cm) | Length(cm) | m³ | ||
| BY620 | 2 | 50 | 53 | 6 | 18 | 35 | 67 | 8.5 | 0.039 |
| BY625 | 2.5 | 63 | 66 | 45 | 68 | 11 | 0.051 | ||
| BY630 | 3 | 75 | 78 | 55 | 72 | 13 | 0.068 | ||
| BY640 | 4 | 100 | 103.5 | 79 | 75 | 17 | 0.096 | ||
| BY650 | 5 | 125 | 128 | 112 | 77 | 21 | 0.125 | ||
| BY660 | 6 | 150 | 153.2 | 137 | 82 | 25 | 0.169 | ||
| BY680 | 8 | 200 | 203.2 | 180 | 88 | 33 | 0.256 | ||
| Article NO. | Size | ID | OD | Working Pressure | Bursting Pressure | Weight | PACAKING SIZE | VOLUME | |
| BY Series | Inch | mm | BAR | KG/100M | ID(cm) | Length(cm) | m³ | ||
| BY820 | 2 | 50 | 53 | 8 | 24 | 37.5 | 67 | 8.5 | 0.039 |
| BY825 | 2.5 | 63 | 66 | 50 | 68 | 11 | 0.051 | ||
| BY830 | 3 | 76 | 79 | 60 | 72 | 13 | 0.068 | ||
| BY840 | 4 | 100 | 103.5 | 85 | 75 | 17 | 0.096 | ||
| Article NO. | Size | ID | OD | Working Pressure | Bursting Pressure | Weight | PACAKING SIZE | VOLUME | |
| BY Series | Inch | mm | BAR | KG/100M | ID(cm) | Length(cm) | m³ | ||
| BY620 | 2 | 50 | 53 | 10 | 30 | 45 | 67 | 8.5 | 0.039 |
| BY625 | 2.5 | 63 | 66 | 55 | 68 | 11 | 0.051 | ||
| BY630 | 3 | 76 | 79 | 65 | 72 | 13 | 0.068 | ||
| BY640 | 4 | 100 | 103.5 | 90 | 75 | 17 | 0.096 | ||
Taizhou Luqiao Yuxin Water Pipe Factory was founded in 1997, specialized in manufacturing,researching and developing pvc lay flat hoses, pvc lining hoses,drip irrigation tapes.
We do our best more than 26 years,our factory has been has been a leader in the hose market and grows stronger year by year.Our factory is specialized in production of“BAYU”Brand,“JINZHU”Brand PVC lay flat hose(agriculture hose,industrial hose, high pressure hose,sand suction hose,sewage pump hose),PVC lining fire hose,drip irrigation tape,ABS coupling,aluminum coupling,fire hose coupling,stainless steel hose clamp,iron hose clamp,drip hose fittings as well as all kinds of parts with big variety.
Depend on the advantage of high strength,wear resistance,pressure resistance and reliable quality and long service life,our hoses are widely applicated for agriculture, industry &garden irrigation, water drainage series,river sand pumping,drainage for building and road constructions. Our products meet the request of ROHS,PAHS,REACH and so on.Our sales network has extended from domestic to more than 30 countries such as Southeast Asia,Oceania,Central&South America,Middle East,Europe etc. We have established stable domestic and export channels.
Our staffs of sales and technical support is available to help you in selecting the right production for your application as well as to provide you with samples of our products for evaluation. we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge, high quality product offering.
Our ultimate goal is your satisfaction.
Welcome new and old customers from home and aboard to visit our factory for negotiation and cooperation.Let us make a better,mutually beneficial future together!
