Home / Products / PVC Layflat Hose / Flexible Pvc Lay Flat Water Hose 2 Inch Diameter 2 Bar Working Pressure 50 Meter Per Roll Layflat Discharge Hose

Products

Share to:

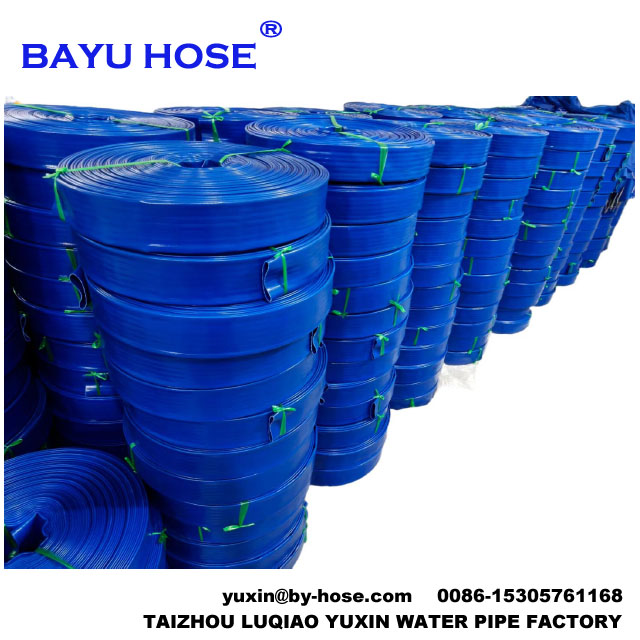

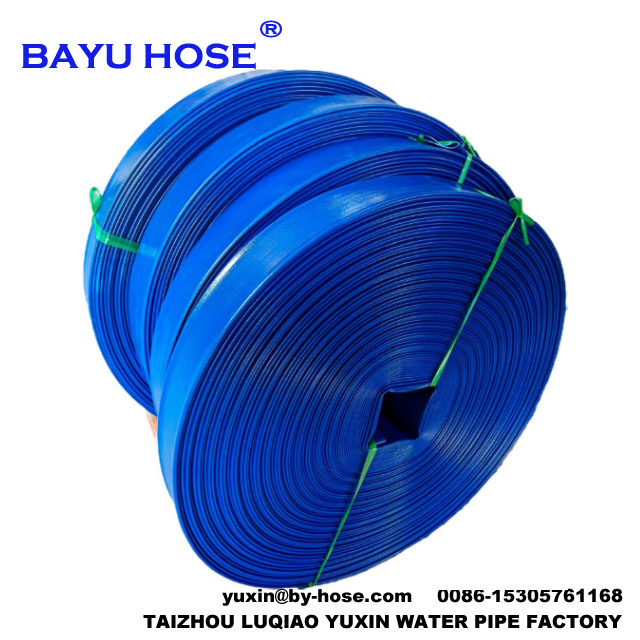

Flexible Pvc Lay Flat Water Hose 2 Inch Diameter 2 Bar Working Pressure 50 Meter Per Roll Layflat Discharge Hose

Specially designed 2 inch flexible PVC layflat hose, 2 bar working pressure, 50m per roll. Flexible, portable and space-saving. Reliable performance for water transfer, drainage, irrigation and construction dewatering. Suitable for both commercial and residential use.

Availability:

Quantity:



Inquire Add to Basket

Model:
BY220
Brand:
BAYU HOSE
Code:
3917390000

Product Description

We supply professional PVC lay flat water hose with complete specifications. This model comes with 2 inch inner diameter, 2 bar working pressure, and the standard package is 50 meters per roll.

Manufactured with reinforced PVC material, the hose boasts good flexibility, high pressure resistance, abrasion resistance and anti-aging properties. It remains soft under different weather conditions, not easy to harden or leak. The layflat structure effectively reduces logistics and storage costs, convenient for bulk transportation and inventory management.

This product is widely applicable to agricultural irrigation, engineering dewatering, mine drainage, aquaculture water exchange and large-scale water transfer projects. We support bulk orders, customized packaging and stable global supply. All products are strictly inspected before delivery to guarantee consistent quality.

OEM&ODM

Application Scenarios

Product Parameters

Article NO.	Size	ID	OD	Working Pressure	Bursting Pressure	Weight	PACAKING SIZE		VOLUME
BY Series	Inch	mm		BAR		KG/100M	ID(cm)	Length(cm)	m³
BY210	1	25	27	2	6	13	54	4.5	0.013
BY212	1.25	32	34			14.5	54	5.5	0.016
BY215	1.5	38	40			18	54	6.5	0.019
BY220	2	50	52			24	55	8.5	0.026
BY225	2.5	63	65			31	55	11	0.033
BY230	3	76	78			36	60	13	0.047
BY240	4	100	102			50	68	17	0.079
BY250	5	125	128			75	72	21	0.109
BY260	6	150	153			91	75	25	0.141
BY280	8	200	203			137	75	33	0.186

Article NO.	Size	ID	OD	Working Pressure	Bursting Pressure	Weight	PACAKING SIZE		VOLUME
BY Series	Inch	mm		BAR		KG/100M	ID(cm)	Length(cm)	m³
BY310	1	25	27.5	3	9	16	54	4.5	0.013
BY315	1.5	38	40.5			22	56	6.5	0.021
BY320	2	50	52.5			30	63	8.5	0.034
BY325	2.5	63	65.5			40	65	11	0.047
BY330	3	76	79			46	65	13	0.055
BY340	4	100	103			64	66	17	0.075
BY350	5	125	128			81	67	21	0.095
BY360	6	150	153			92	72	25	0.13
BY380	8	200	203			138	78	33	0.201
BY3100	10	250	253			250	85	40	0.29
BY3120	12	300	305			350	93	48	0.42

Article NO.	Size	ID	OD	Working Pressure	Bursting Pressure	Weight	PACAKING SIZE		VOLUME
BY Series	Inch	mm		BAR		KG/100M	ID(cm)	Length(cm)	m³
BY420	2	50	53	4	12	35	67	8.5	0.039
BY425	2.5	63	66			45	67	11	0.05
BY430	3	76	79			55	71	13	0.066
BY440	4	100	103.5			75	73	17	0.091
BY450	5	127	130.5			87	75	21	0.119
BY460	6	152	155.5			125	80	25	0.16
BY480	8	203.2	207.2			150	85	33	0.239

Article NO.	Size	ID	OD	Working Pressure	Bursting Pressure	Weight	PACAKING SIZE		VOLUME
BY Series	Inch	mm		BAR		KG/100M	ID(cm)	Length(cm)	m³
BY620	2	50	53	6	18	35	67	8.5	0.039
BY625	2.5	63	66			45	68	11	0.051
BY630	3	75	78			55	72	13	0.068
BY640	4	100	103.5			79	75	17	0.096
BY650	5	125	128			112	77	21	0.125
BY660	6	150	153.2			137	82	25	0.169
BY680	8	200	203.2			180	88	33	0.256

Article NO.	Size	ID	OD	Working Pressure	Bursting Pressure	Weight	PACAKING SIZE		VOLUME
BY Series	Inch	mm		BAR		KG/100M	ID(cm)	Length(cm)	m³
BY820	2	50	53	8	24	37.5	67	8.5	0.039
BY825	2.5	63	66			50	68	11	0.051
BY830	3	76	79			60	72	13	0.068
BY840	4	100	103.5			85	75	17	0.096

Article NO.	Size	ID	OD	Working Pressure	Bursting Pressure	Weight	PACAKING SIZE		VOLUME
BY Series	Inch	mm		BAR		KG/100M	ID(cm)	Length(cm)	m³
BY620	2	50	53	10	30	45	67	8.5	0.039
BY625	2.5	63	66			55	68	11	0.051
BY630	3	76	79			65	72	13	0.068
BY640	4	100	103.5			90	75	17	0.096

Company Profile

Taizhou Luqiao Yuxin Water Pipe Factory was founded in 1997, specialized in manufacturing,researching and developing pvc lay flat hoses, pvc lining hoses,drip irrigation tapes.

We do our best more than 26 years,our factory has been has been a leader in the hose market and grows stronger year by year.Our factory is specialized in production of“BAYU”Brand,“JINZHU”Brand PVC lay flat hose(agriculture hose,industrial hose, high pressure hose,sand suction hose,sewage pump hose),PVC lining fire hose,drip irrigation tape,ABS coupling,aluminum coupling,fire hose coupling,stainless steel hose clamp,iron hose clamp,drip hose fittings as well as all kinds of parts with big variety.

Depend on the advantage of high strength,wear resistance,pressure resistance and reliable quality and long service life,our hoses are widely applicated for agriculture, industry &garden irrigation, water drainage series,river sand pumping,drainage for building and road constructions. Our products meet the request of ROHS,PAHS,REACH and so on.Our sales network has extended from domestic to more than 30 countries such as Southeast Asia,Oceania,Central&South America,Middle East,Europe etc. We have established stable domestic and export channels.

Our staffs of sales and technical support is available to help you in selecting the right production for your application as well as to provide you with samples of our products for evaluation. we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge, high quality product offering.

Our ultimate goal is your satisfaction.

Welcome new and old customers from home and aboard to visit our factory for negotiation and cooperation.Let us make a better,mutually beneficial future together!

lay flat pvc water hose flexible pvc discharge hose 2 inch layflat water hose 2 bar 50m roll layflat pvc hose 2" lay flat discharge pipe LAYFLAT HOSE pvc layflat hose WATER HOSE DISCHARGE HOSE flexible pvc hose
